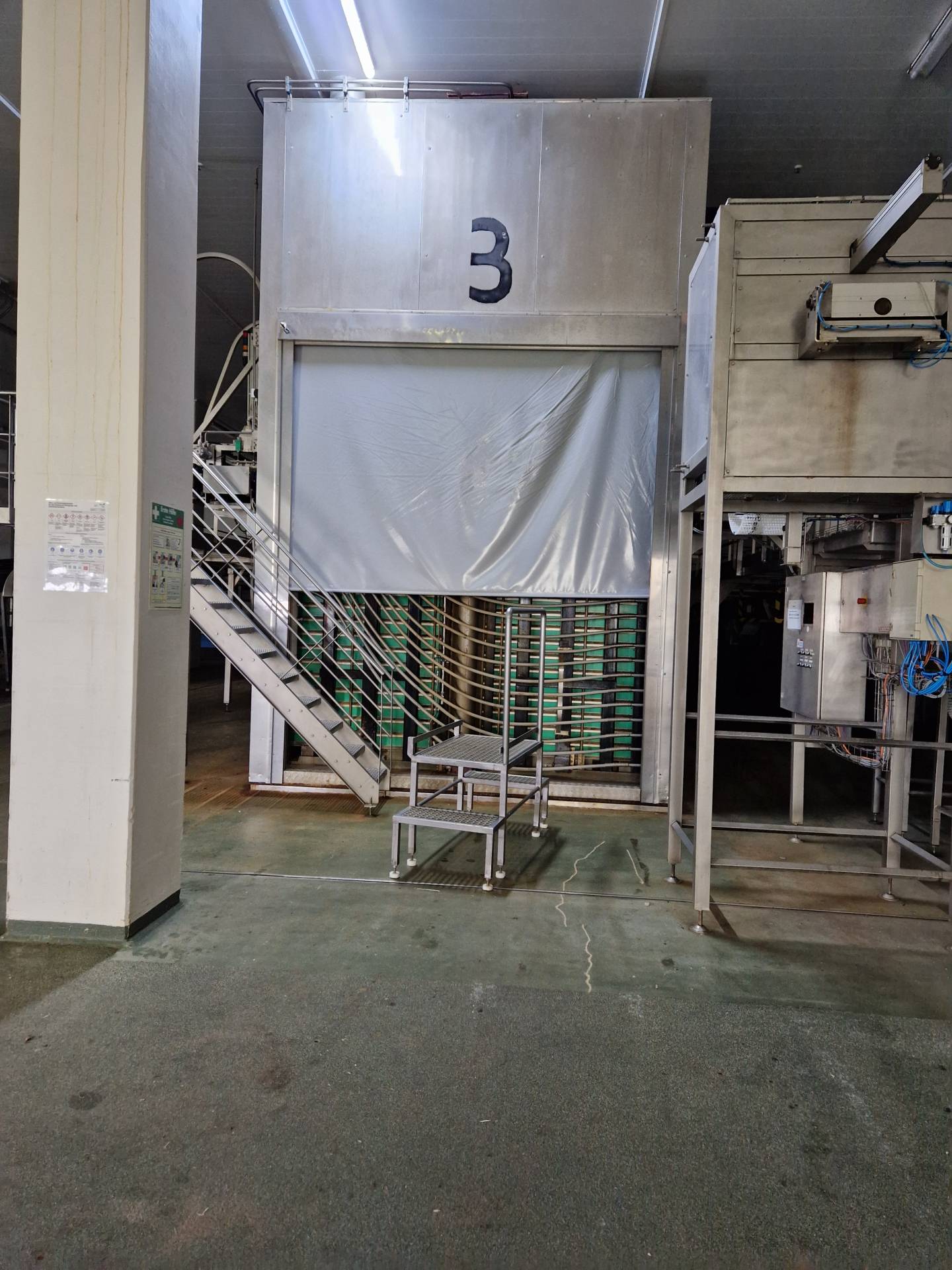

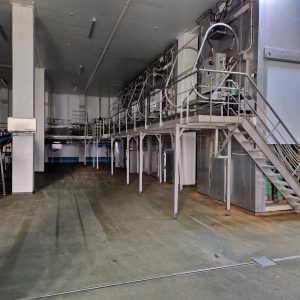

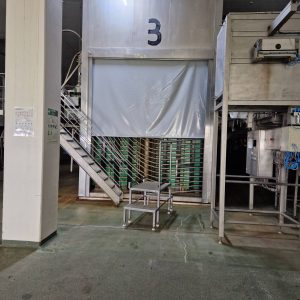

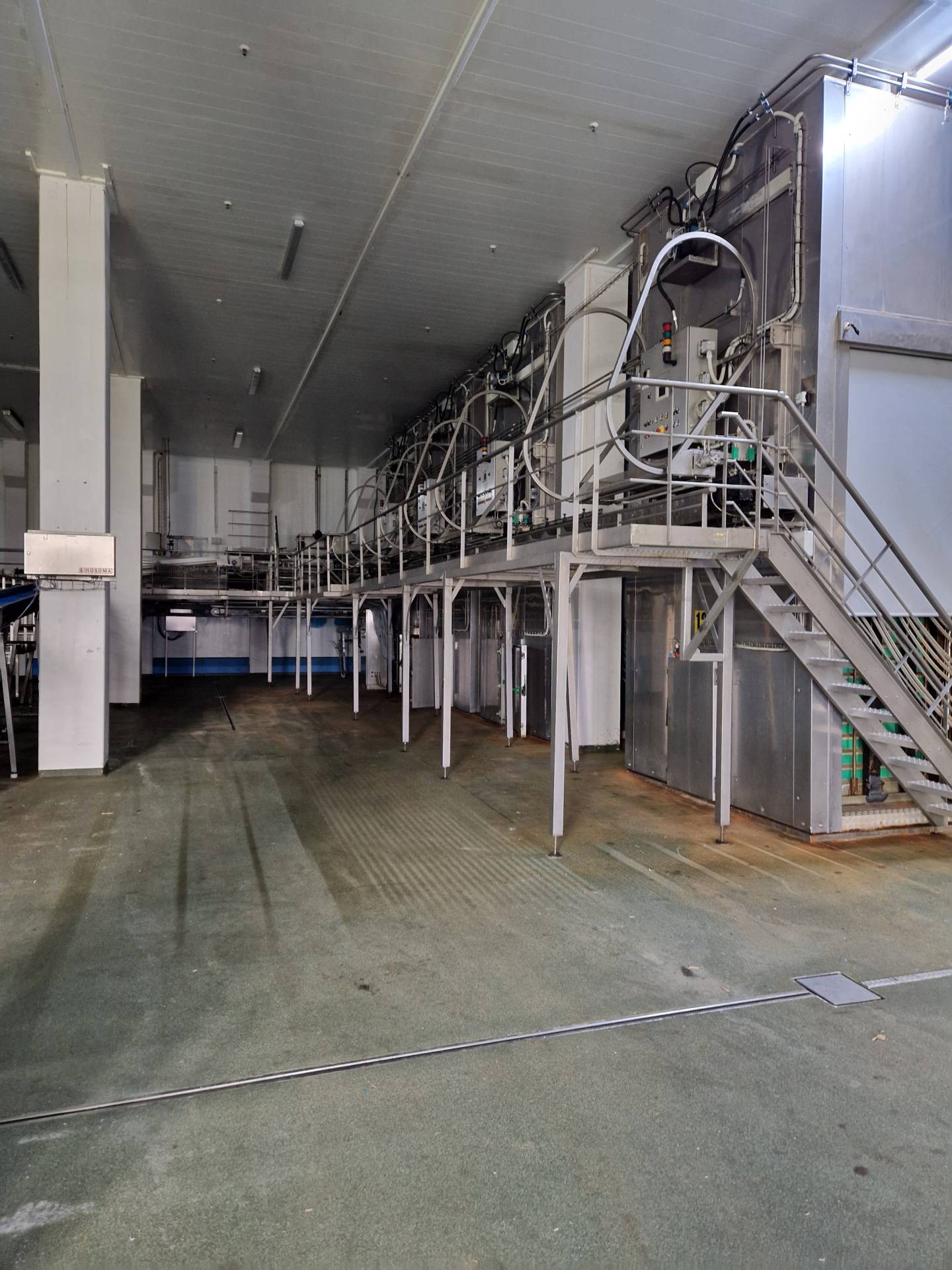

The Samifi automatic plate freezer is a high-capacity, fully automated plate freezer designed for efficient, in-line freezing of packaged or bulk foods, offering optimized space usage, energy
efficiency, and minimal supervision requirements.
technical Specifications
4 pieces available .
Has produced 20 kg blocks
Type M DULE 19
19 plates
plate size 1750×3400 mm
Processing Capacity: Ranges from up to 7 tons per hour; NH3 (ammonia) cooling capacity around 460 kg/h for certain configurations
.
• Refrigerant: Typically R717 (ammonia)/CO2 , capable of reaching temperatures down to -40°C to -60°C
• Cooling Power: Example: 125 kW per unit at design conditions
• Footprint: Compact design, approximately 4 x 4 x 6 m, minimizing floor space requirements while allowing high freezing throughput
• Power Requirements: Often 3 x 380V, 50Hz, 3 x 13 kW depending on model
• Weight: Ranges from 14 to 30 tons depending on configuration
Additional Features
• Energy Efficiency: Up to 34% less energy consumption compared to blast freezing systems; operational costs can be up to 50% lower than other systems

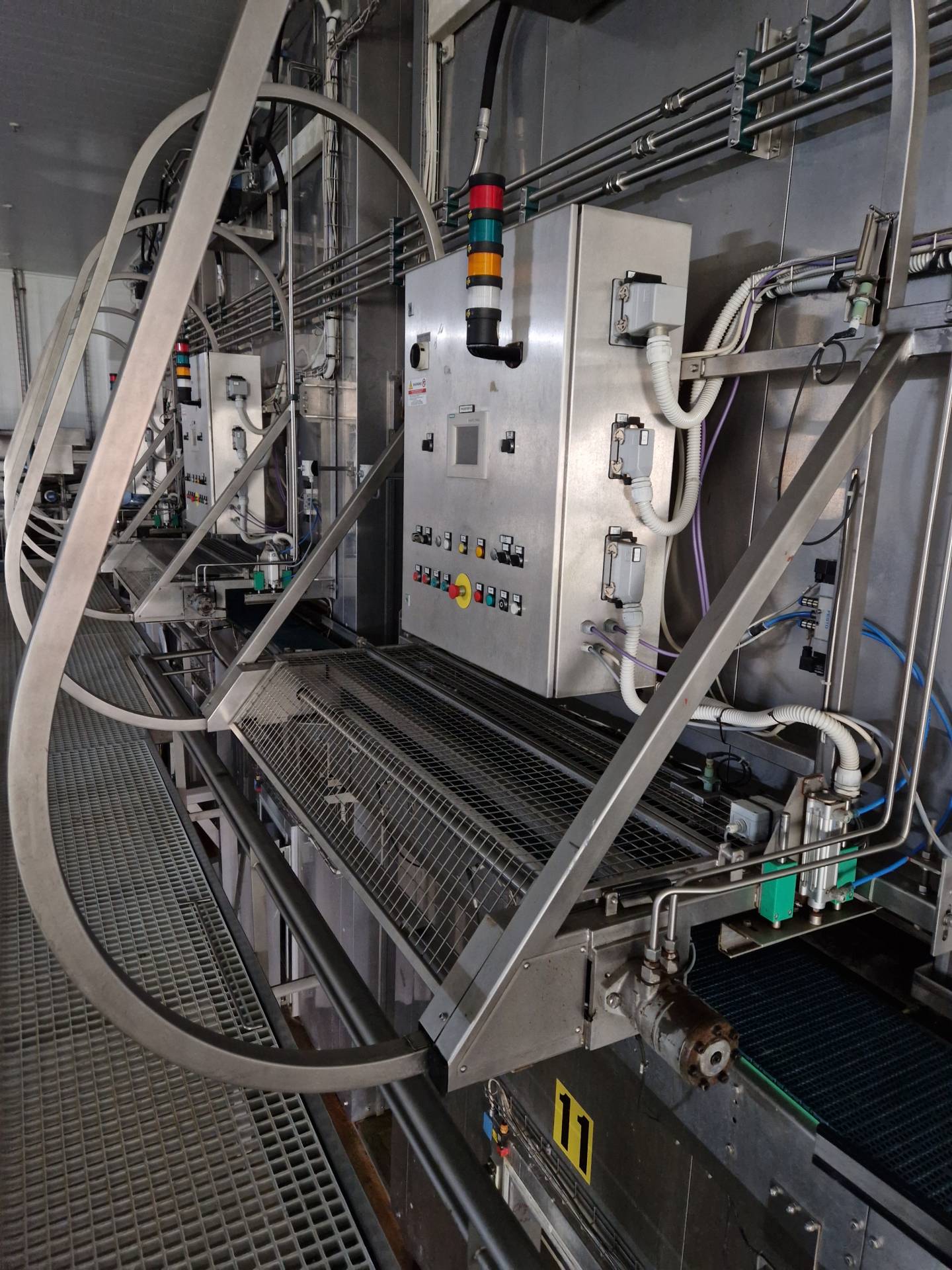

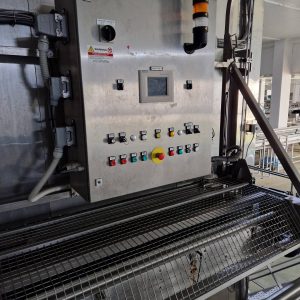

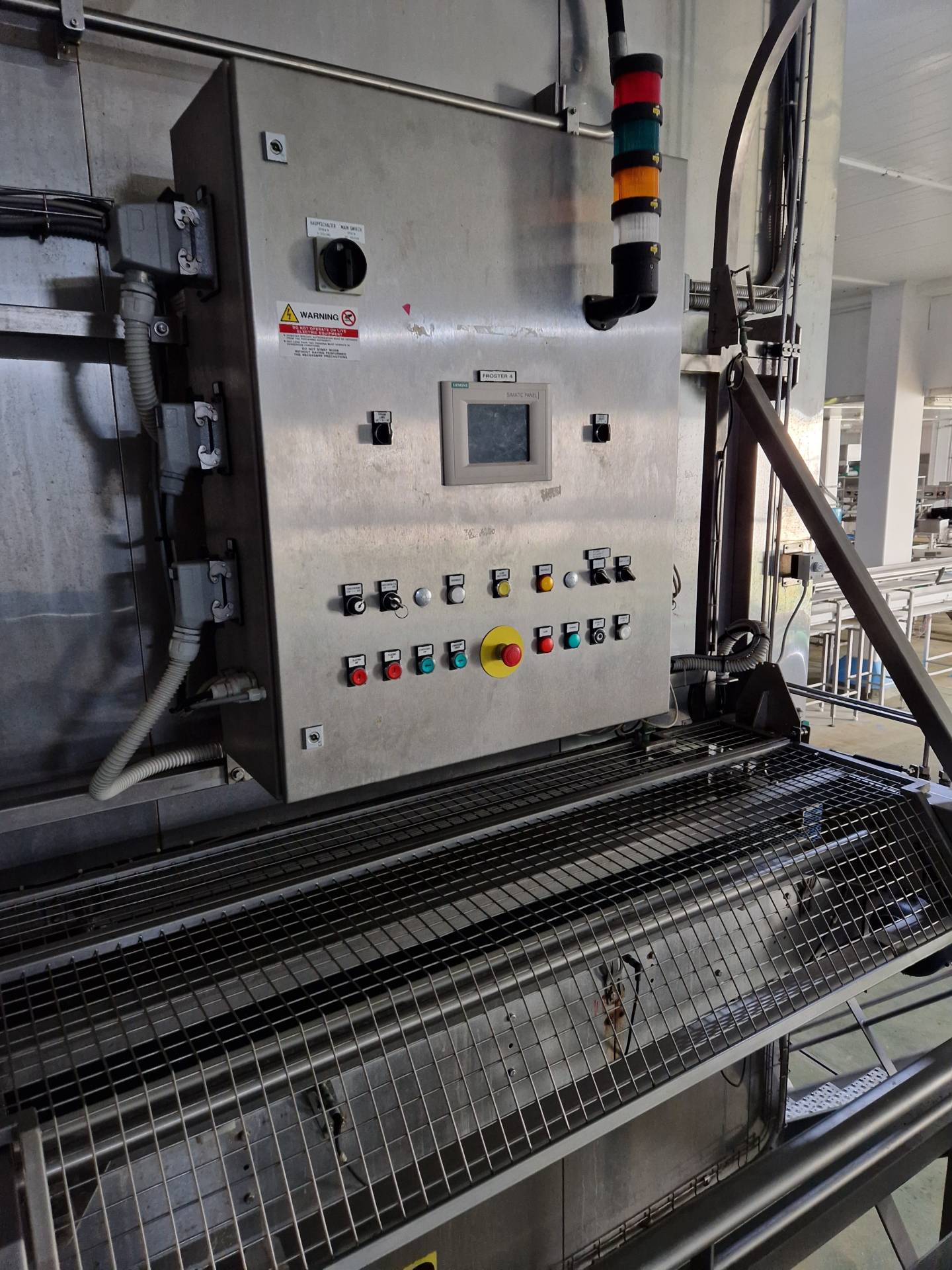

• Automation and Flexibility: Automatic adjustment of plate opening and in-feed movement according to product size, ensuring safe and uniform freezing; a wide range of accessories are available for customization
.

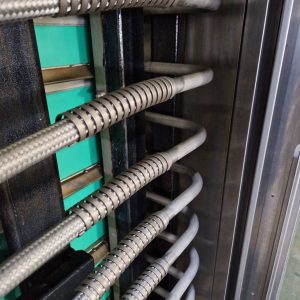

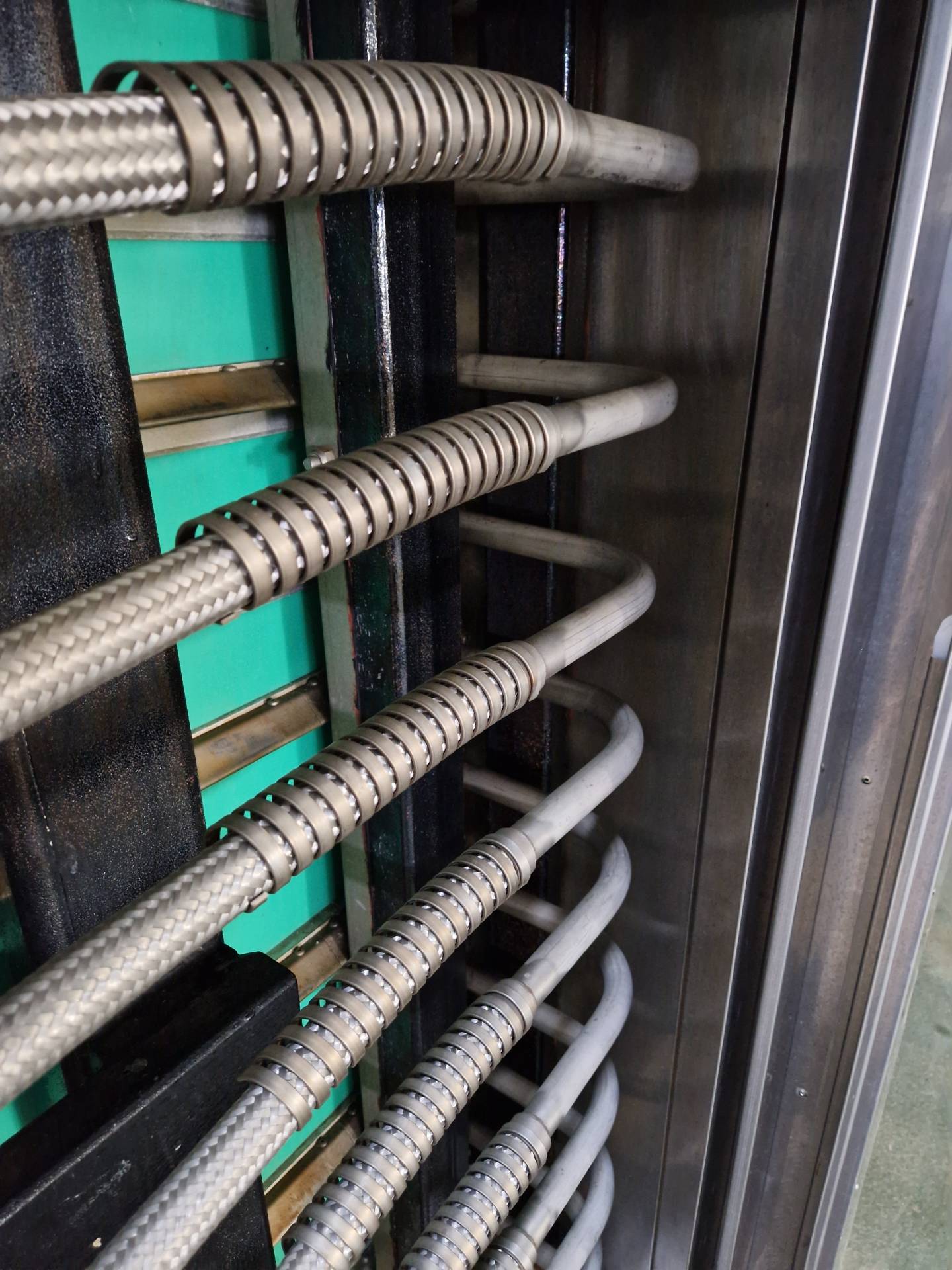

• Construction: Plates made of extruded Al-Si alloy, flexible stainless steel hoses, and stainless steel-insulated cabin and inspection doors with heater tapes for efficient operation
