Type 4700
Complete with infeed and discharge conveyors
AGE 2005 in excellent condition

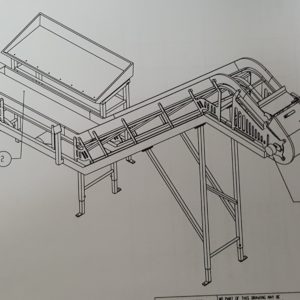

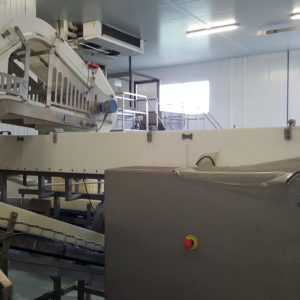

There is a “gooseneck conveyor that feeds a roundabout conveyor.
The product drops onto an accelerator conveyor and goes to the scale.
The batches are prepared and once completed they fall onto a takeaway conveyor.

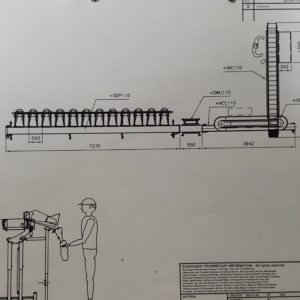

Please see the specs in attached.
Running direction : LR

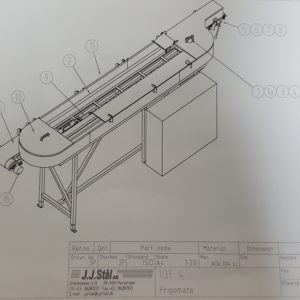

Flighted infeed conveyor :
Inlet height : 850 mm
Total length: 4950 mm
Outlet height: 1600 mm
Belt speed : 28 m/min
Belt typ: intralox S800NUBtop
Belt width:350mm
Flight distance; 200mm
Grader
Type 4700

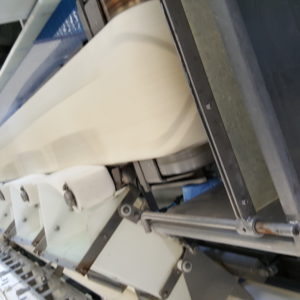

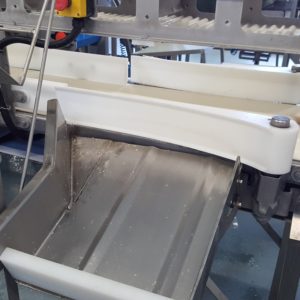

12 stations automatic outputs 4 stations manual outputs

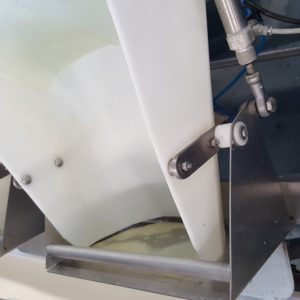

Gates c to c 550 mm
Beltspeed variable 60 till 120 MTR/min
Belt width 275 mm
Age 2005
Program:
Grading by weight
Batching to count
Batching to minimum
Batching to target weight
Chute aperture: 400/280 mm approx 30 litre
Weighing Bridge: 950 mm
Weighing Plate: 550 mm
Weighing range: 1000g
Division:1g
Belt type : Blue
Manual: Available
