BRINE-CHILLER SYSTEM FOR COOLING OR FREEZING OF
FISHPRODUCTS
CAPACITY: approx. 2000 KG/ HOUR FROM 0 DEGREES C TO -18 DEGREES C USING BRINE
27% SOLUTION.
CAN ALSO BE USED FOR SEALED TUNA LOINS OR MEAT
SPINNCHILLER:
LENGHT 6,2 METER – WIDTH 2,4 METER AND HEIGHT 2,4 METER, stainless steel 316
CHILLER MACHINERY:
SHELL & TUBE CHILLER – SCREW COMPRESSOR – CONDENSER – CONTROLS – CIRC.
PUMPS

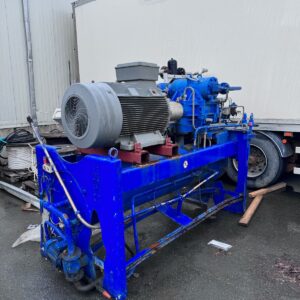

Overhauled compressor package with 110kW motor. Refr.cap. 300kW at -25/+35 C
Seawater cooled shell & tube condenser with titanium tubes.

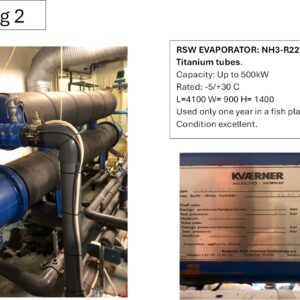

Kvaerner Titan chiller 450Kw
Grundfoss pumps, dual type
