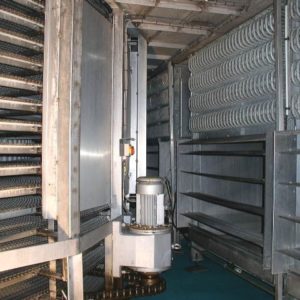

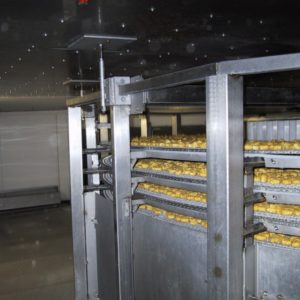

| Subject: | Spiral freezer | ||||
| Brand: | Starfrost Frigoscandia Helix Freezing System | ||||
| Type: | 85-40-27.25 | ||||
| Year of Build: | 1994 | ||||
| Stages: | 27.25 | ||||
| Belt width: | 1016mm, 966 mm useful | ||||
| Length belt: | 557 meters | ||||
| Product clearance: | 60 mm max. | ||||
| Reference time: | 45 minutes | ||||
| KG/Hour: approx 8 | Approx 7 ton till 8 ton | ||||
Sizes:
Length machine chamber: 14 meters
Width machine chamber: 8,6 meters
Height machine chamber: 5,1 meters

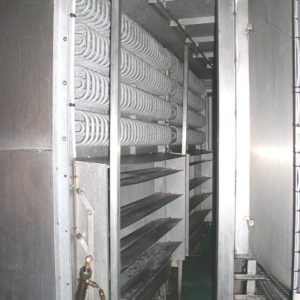

Totall 9 evaporators with a total capacity of 900 kw – 40 degree C
You do not need to use the 900 kw if it is required
NOTE the drawing is the original drawing with 6 fans , but later it is expanded to 9 fans !!!
Fans:
Brand: Woods
Pieces: 9
Type: 90jm/25/4/9
Capacity: 13 kW p. fan
Belt wash installation included. Prespool with 2,5 bar, after spool with 70 bar with 50°C water temperature.

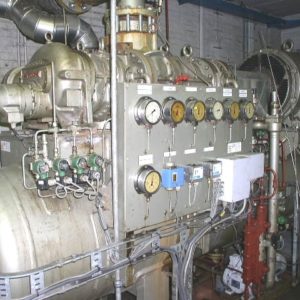

Installation is working on Freon R22 system, can be rebuild for NH3 (ammonia).
