Part 1 = Water Chiller
1 Container 42”: 102-01: Water Chiller
Water Chiller Plant
Model: CRW260H22NH3
Capacity: 10m³/h
Components:

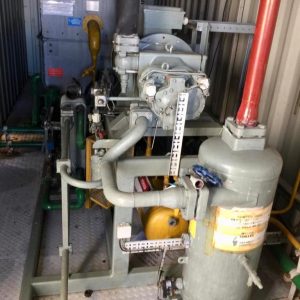

– 1 pc Compressor Unit
Model: CRW260H
Capacity: 260 kW
– 1 pc Evaporator condenser
Model: EC350
Capacity: 350 kW
– 1 set Evaporator, cold water
Model: 260
Capacity: 269kW
Part 2 = Flake Ice System
1 Container 42”: 103-01: Evaporator and Compressor Maycom
Evaporator maycom
Model -EC1000
Capacity: 1000 kW

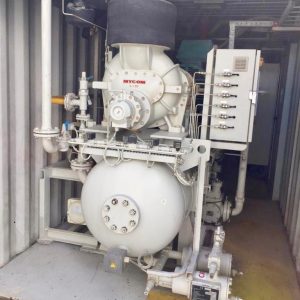

Screw Compressor
Refrigerant Capacity: 645 kW
Power: 290 kW
Refrigerant: Ammonia
1 Container 42”: 103-02: 3 North Star flake ice makers, model M9CS – total
capacity 137 ton/day (45,7 ton/24 h each one)
Big ice storage with rake system, for automatic loading and disharge of the ice. Include screw conveyors, include full manual to build up the storage. ( see attachment)
All manuals are available.
